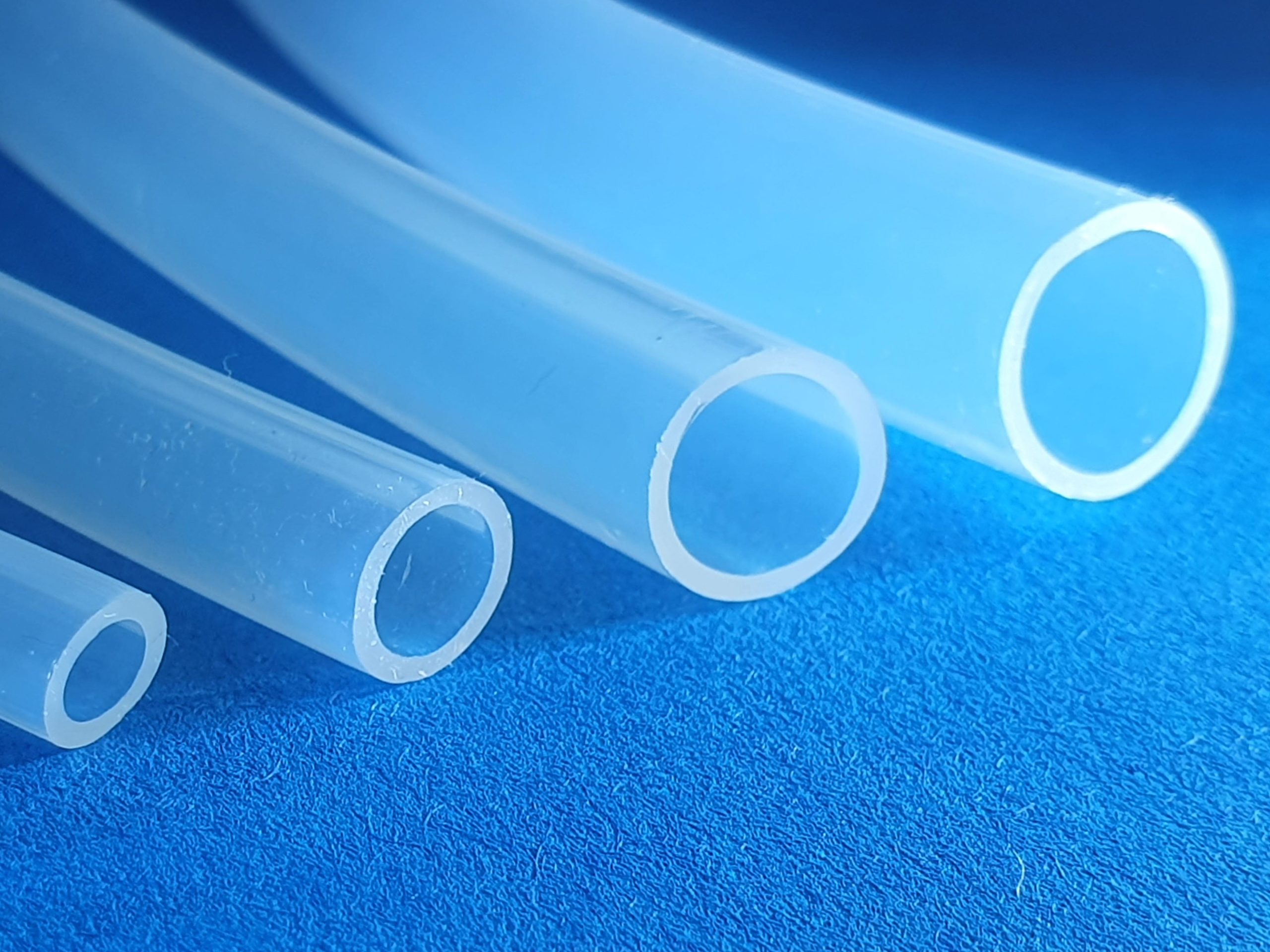

FEP Tube 0.8mm x 1.6mm (1/32″ x 1/16″)

Description

When high optical clarity, excellent flexibility, or a lower melt temperature are required, FEP is often the preferred choice. It offers a combination of transparency and processability that makes it ideal for applications where visual monitoring and easier processing are important.

• Inner Diameter (ID) 0.8 mm (1/32″) +/- 0.08 mm
• Outer Diameter (OD) 1.6 mm (1/16″) +/- 0.08 mm
• Wall Thickness 0.4 mm +/- 0.08 mm
• Material 100% Virgin FEP (Fluorinated Ethylene Propylene)
• Color Transparent
• Surface Smooth, low-friction
• Chemical Resistance Excellent chemical resistance against most acids, alkalis, and organic solvents
• Temperature Range −80 °C to +200 °C
• Minimum Bend Radius 8 mm
• Working Pressure (20 °C) 13 bar
• Burst Pressure (20 °C) 52 bar
• FDA Approved Yes

Tube Shop Group also offers this FEP Tube 0,8mm x 1,6mm (1/32″ x 1/16″) in alternative materials such as PFA or PTFE. PFA might be preferred when higher temperature resistance is required. PTFE is often chosen for its outstanding chemical resistance and lower price point.
